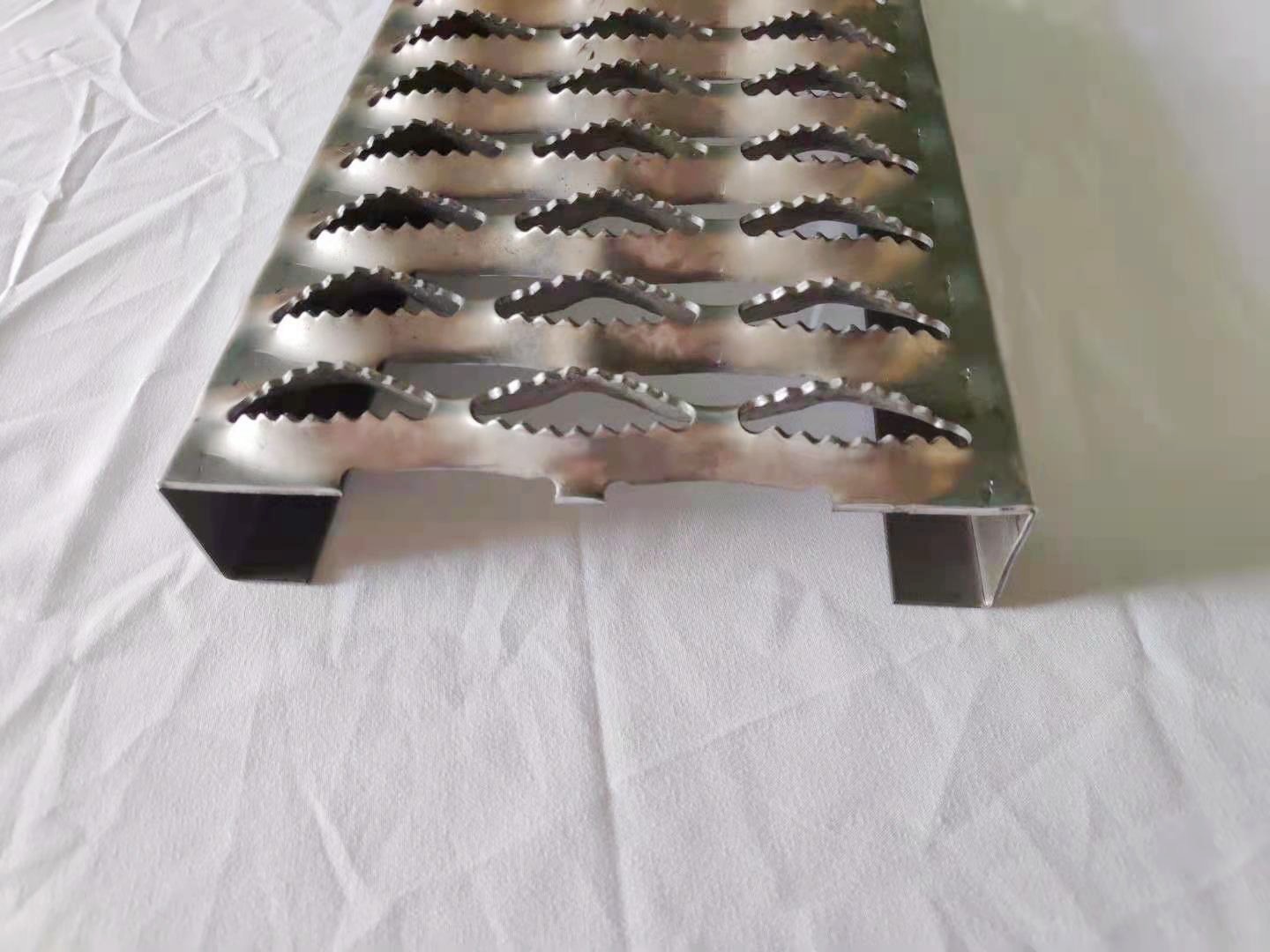

Industrial Mezzanines Diamond Holes Aluminum Metal Stair Treads in
Grip Strut Safety Grating For Anti Skid
Product Introduction
Grip struct walkway channels use the same open diamond of standard
grip strut planks.This safe walking surface allows for draining of
liquids,passage of debris and excellent slip resistance in all
directions.Using the heavy duty,These walkway channels are
manufactured from thicker steel which allows for larger unsupported
spans.
Grip strut 10 diamond walkway is an excellent choice for conveyor
walkways or inclined or inclined walkways that require the
combination of ease of installation.Slip resistant surface, toe
boards includes,and protective galvanized coatings,Available in
lengths up to 24" and in 14 gauge thick carbon steel.
Product Material
Material | hot-rolled, cold-rolled, galvanized sheet,aluminum, stainless steel
sheet and so on |
Thickness | 2.0mm-5.0mm |
Width | ≤1000mm |
Length | ≤4000mm |
Surface treatment | electro-galvanized, hot-dip galvanized, polishing and so on |
Holes type | alligator mouth type, round convex type, tear-type, bridge-type
hole |
Processing procedure | raw materials- CNC molding- bending- welding- forming- packaging |
| Plank Widths | Channel Depths |
| 2 Diamond - 4-3/4" wide | 14 gauge Steel - 1-1/2", 2", 2-1/2" |
| 3 Diamond - 7" wide | 12 gauge Steel - 1-1/2", 2", 2-1/2", 3" |
| 4 Diamond - 9-1/2" wide | 12 gauge (.080) Aluminum - 2" |
| 5 Diamond - 11-3/4" wide | 10 gauge (.100) Aluminum - 2" |
| 8 Diamond - 18-3/4" wide | 16 gauge Stainless Steel - 2" |
| 10 Diamond - 24" wide | |
| Length: 10’-0 and 12’-0 ( custom length available up to 24’-0”) |
Product Features and Advantages
*Non-slip surface is ideal for inside or outside locations where
mud, ice, snow, oil and detergents can create hazardous walking
conditions.
*Openings are small enough to catch most falling tools and other
dangerous objects. Open design, convenient cleaning.
*Permits quick drainage of fluids, chips, grease and mud.
*Any ice accumulation shears easily under normal foot pressure.
*Open design allows convenient access for cleaning, and is easily
cleaned with brush, liquid or air spray to help minimize overall
maintenance. *High load capacity, long life.
*High strength-to-weight performance is achieved through depth of
section and structural design.
*Bridged struts with integral side channels form plank that can
support loads with minimum transverse and longitudinal deflection.
*No rivets or pressure joints to break or loosen.
Product Application and Usages
The diamond safety grating walkway with excellent slip resistance
performance and outstanding chemical stability is widely used in
the ocean, offshore and petroleum industries as walkways, catwalks
and other applications.
Grip strut grating has 2-diamond style, 3-diamond style, 4-diamond
style, 5-diamond style, 6-diamond style, 8-diamond style, The
common specification of grip strut grating.
How to purchase the products ?
1:Material Type
2:Thickness(Gauge)
3:Hole Size
4:Hole Shape( round/diamond/raised round hole )
5:Spacing & Configuration
6:Sheet Size
7:Application
8:Surface Treatment
Packing
Iron pallet+satefy belts+PVC films.
It can be customized.
