Introduction

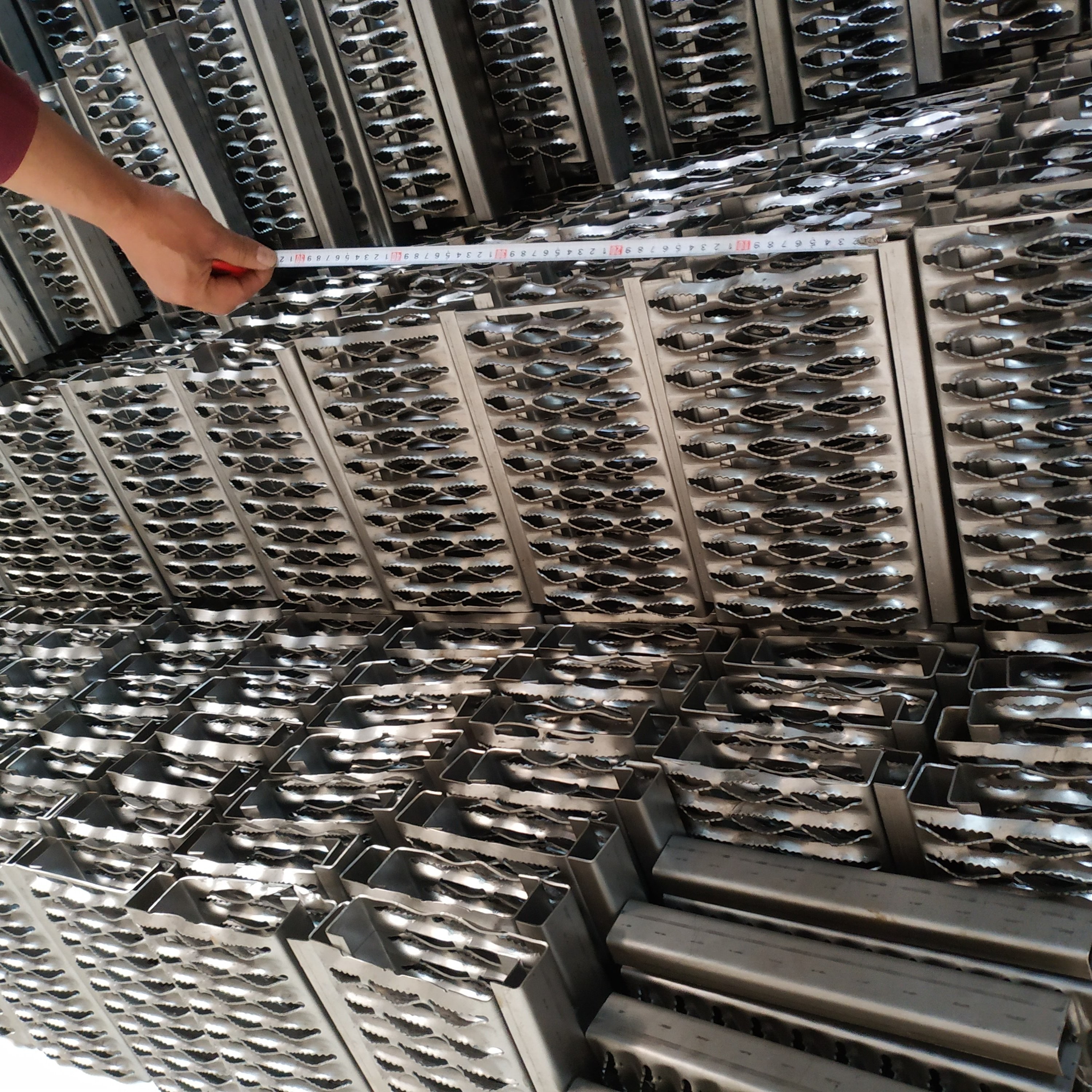

Grip Strut Grating is a one-of-a-kind plank grating sporting a
hefty 24 foot clear span capability.
Heavy Duty Grip Strut Safety Grating products offer the advantages
of regular grip strut plus the capabilities for greater loads
and/or longer spans.
Channel height available:2”,2 1/2”,3”,4”,5”(walkway)
Steel gauge:9GA,10GA,11GA
Channel width:9 1/4”,13 3/4”,27 4/7”,30”,36”
Standard Length:10’,12’
Normally Used material:Aluminum,Stainless Steel,Galvanized
Steel,Black HRPO,etc
Popular type:2-Diamond,3-Diamond,5-Diamond,6-Diamond,8-Diamond,etc
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating
Material
Material | hot-rolled, cold-rolled, galvanized sheet,aluminum, stainless steel
sheet and so on |
Thickness | 2.0mm-5.0mm |
Width | ≤1000mm |
Length | ≤4000mm |
Surface treatment | electro-galvanized, hot-dip galvanized, polishing and so on |
Holes type | alligator mouth type, round convex type, tear-type, bridge-type
hole |
Processing procedure | raw materials- CNC molding- bending- welding- forming- packaging |
| Plank Widths | Channel Depths |
| 2 Diamond - 4-3/4" wide | 14 gauge Steel - 1-1/2", 2", 2-1/2" |
| 3 Diamond - 7" wide | 12 gauge Steel - 1-1/2", 2", 2-1/2", 3" |
| 4 Diamond - 9-1/2" wide | 12 gauge (.080) Aluminum - 2" |
| 5 Diamond - 11-3/4" wide | 10 gauge (.100) Aluminum - 2" |
| 8 Diamond - 18-3/4" wide | 16 gauge Stainless Steel - 2" |
| 10 Diamond - 24" wide | |
| Length: 10’-0 and 12’-0 ( custom length available up to 24’-0”) |
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating
Features and Advantages
• Openings are small enough to catch most falling tools and other
dangerous objects. Open design, convenient cleaning.
• Permits quick drainage of fluids, chips, grease and mud.
• Any ice accumulation shears easily under normal foot pressure.
• Open design allows convenient access for cleaning, and is easily
cleaned with brush, liquid or air spray to help minimize overall
maintenance. • High load capacity, long life.
• High strength-to-weight performance is achieved through depth of
section and structural design.
• Bridged struts with integral side channels form plank that can
support loads with minimum transverse and longitudinal deflection.
Anti skid Diamond Grip Hole Galvanized Steel Walkway plank grating Application
Modern Architecture & Design: municipal furniture, outdoor furniture, billboards, furniture
decorations,painting color perforated metal shelf
systems,perforated metal products lighting and heating covers,
decorative grilles, litter baskets and household equipment etc.
White Goods Components: cooling bars, draining boards, washing machine filters, kitchen
equipment, microwave doors, centrifugal utensils, vapour absorber
grilles, grill racks, graters and perforated pan covers etc.
Building: building cladding, perforated wall facades, dirlling metal
ceilings, balustrades, perforated metal balcony panels, arcades and
sunbreakers,perforated windows blinds screen, gates, fences,
perforating metal screens, punching metal decorative false
grates,Hexagonal Hole Pattern perforated metal safety covering,
grates, perforated steel acoustic panels, ventilation, diffusers
and airoutlets,perforated safety metal catwalks, cable troughs and
heaters etc.

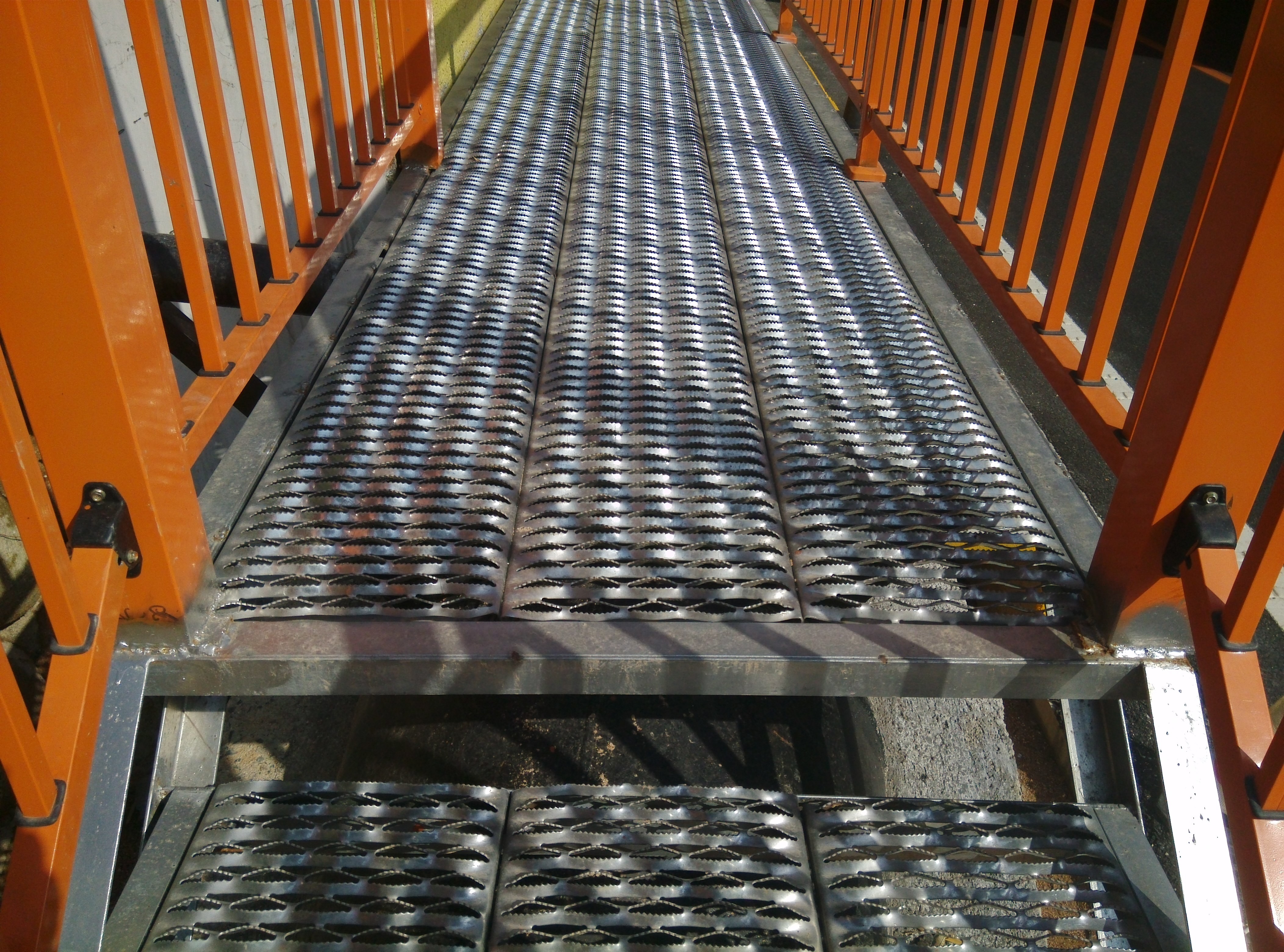

Catwalks: safety gratings serve as lightweight and economical flooring
components with minimal maintenance requirements. They improve
safety conditions for employees using the walkway by mitigating the
risk of slipping due to the presence of ice, moisture, and oil
accumulation. In large facilities, they facilitate better lighting
conditions as the holes in the individual grating sections allow
light to pass through relatively unobstructed.

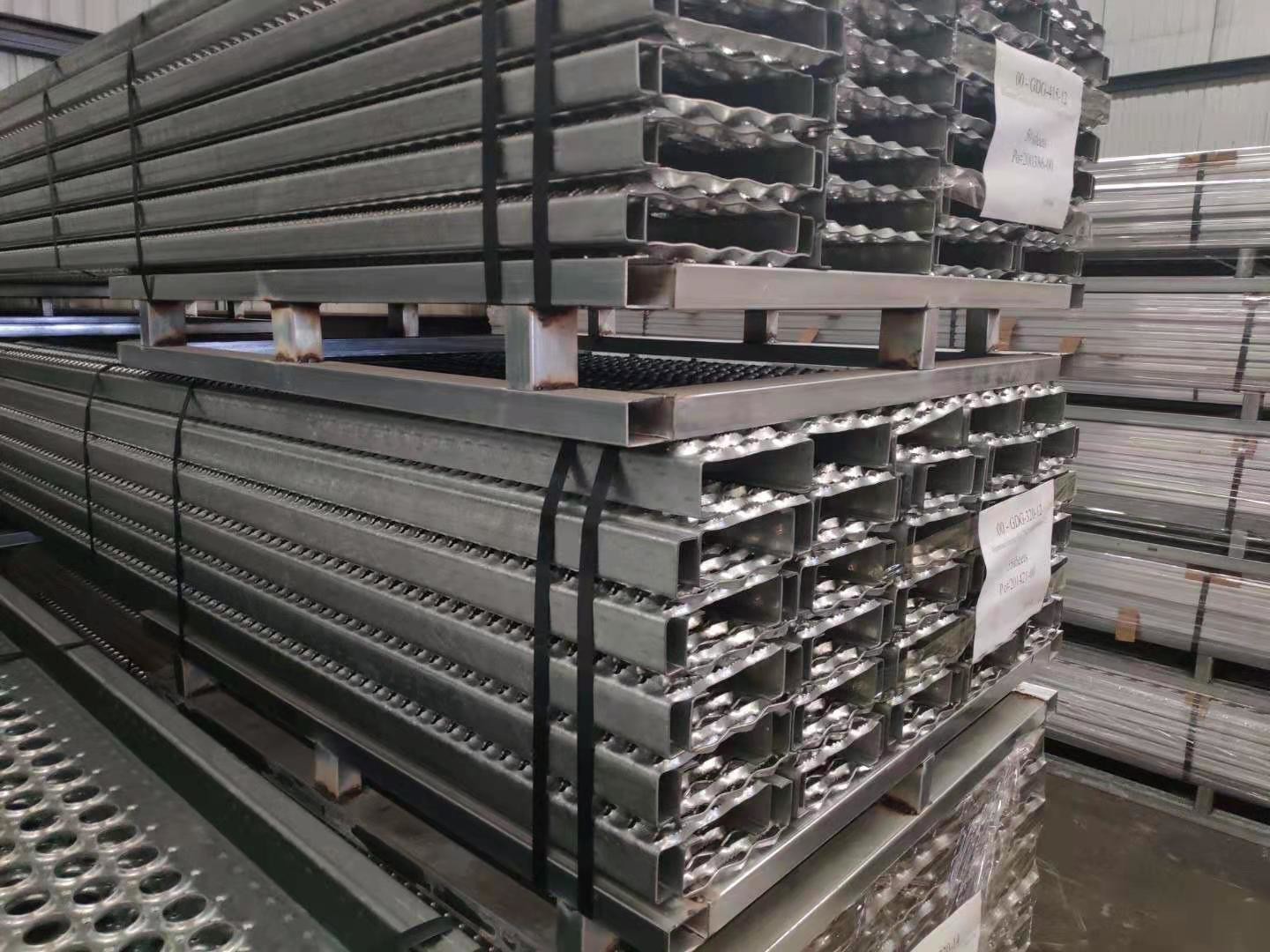

Packing
Iron pallet+satefy belts+PVC films.
It can be customized.
