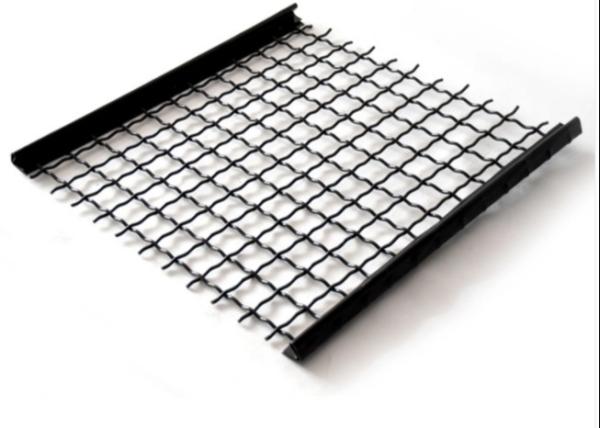

Hooked Crimped Square Hole Wire Mesh Panel For Stone Sieve Screen
Mesh
Stone sieve screen mesh basic information
Pre crimp and heavy duty wire mesh with hook is widely used in
industry for filtration,separation,crushing,grading,sizing and
shifting.It is applicable for a variety of materials.ranging from
minerals,stones and ores.Due to its rigid design and excellent
protection against abrasions.It is highly suitable for processing
heavy abrasive materials like crushes stones,sand and gravel coal.
Stone sieve screen mesh detail specifications
Crusher screen wire mesh is also called vibrating screen woven
mesh.crusher woven wire mesh,quarry vibrating screen mesh,It is
wearable resistance,high frequency and longer life.
| Item | Wire diameter (mm) | Open size(mm) | Width (m) | Length(m) | Weight(kg/pcs) |
| 1 | 2 | 3 | 1.5 | 2 | 32 |
| 2 | 3 | 5 | 1.5 | 2 | 42.6 |
| 3 | 4 | 8 | 1.5 | 2 | 51.13 |
| 4 | 4.5 | 12 | 1.5 | 2 | 46.77 |
| 5 | 5 | 16 | 1.5 | 2 | 45.52 |
| 6 | 5.5 | 18 | 1.5 | 2 | 49.37 |
| 7 | 6 | 20 | 1.5 | 2 | 52.7 |
| 8 | 6 | 22 | 1.5 | 2 | 48.96 |
| 9 | 6.5 | 24 | 1.5 | 2 | 52.87 |
| 10 | 6.5 | 27 | 1.5 | 2 | 48.12 |
| 11 | 7 | 30 | 1.5 | 2 | 50.63 |
| 12 | 8 | 50 | 1.5 | 2 | 42.29 |
| 13 | 12 | 75 | 1.5 | 2 | 64 |
Stone sieve screen mesh features
Crimped wire mesh also called square wire mesh is cloth made from
wire strands.The wires that make up wire mesh run parallel to the
width of the roll and parallel to the length,The cross and line
wires are interwoven.That is the wire cross over and under each
other.Wire mesh can be woven in a number of different styles
depening on the material types,wire diameter and opening sizes.
1.Light weight but good strength is ideal for decoration
2.Simple design of the structure makes the finished goods elegant
3.It is easy to install and durability but low maintenance cost.
4.Bright color,high temperature resistance,corrosion resistance and
environment friendly
5.High strength and durable
6.Allow natural light and air flowing
7.A low level of transparency
8.Offer protection for the buildings
9.Lightweight,easy to install.
Stone sieve screen mesh advantages
1.High sieve net rate
2.Wear resistance,corrosion resistance
3.Uniform mesh,high open rate.
4.Prevent slippery,anti vibration,toughness
5.Long using life
Stone sieve screen mesh application
* Serves as vibrating screens,filter element,infill panel.barbecue
grill,baking rack.
* Used in mining,chemical,petroleum,construction industries
* Designed into decoration,artwork.
Stone sieve screen mesh packages
1.The standard package for the piece it is packaged by pallets.
2.The longer piece will be loading in bulk.
3.The hooked screen mesh also packaged by pallets.
