Curtain Wall External Architectural Stainless Steel Cable Rod
Decorative Mesh
Stainless steel cable rod decorative mesh basic information
Decorative woven mesh is one kind of our wire mesh products.Also
named metal fabric or architectural mesh.It is weaved with high
quality stainless steel wire, aluminum alloy wire,brass wire,copper
wire or other alloy materials.It is a new decorative material in
the modern industrial and architectural decoration applications.
| Architectural Stainless Steel Cable Rod Decorative Mesh |
| Material | Cable diameter | Cable pitch mm | Rod diameter mm | Rod pitch mm | Weight kg/sqm |
| SUS 304 316 316L | 0.75mm*4 | 26.4 | 1.5 | 3.0 | 5.3 |
| 1.0mm*4 | 36.0 | 2.0 | 4.0 | 7.0 |
| 0.6mm*2.0 | 5.5 | 0.8 | 2.3 | 2.6 |
| 2.0mm*4 | 50.0 | 3.0 | 6.0 | 11.56 |
| 3.0mm*3 | 40.0 | 3.0 | 11.0 | 9.5 |
| 2.75mm*2 | 40.0 | 4.0 | 14.5 | 9.41 |
| 1.05mm*2 | 16.0 | 4.0 | 7.0 | 14.9 |
| 2.0mm*3 | 80.0 | 3.0 | 10.0 | 6.6 |
| 1.6mm*1 | 3.2 | 1.2 | 6.0 | 5.0 |
| 2.0mm*1 | 3.1 | 1.2 | 5.0 | 10.0 |
| 2.5mm*1 | 5.0 | 2.0 | 6.0 | 12.2 |
| 2.0mm*3 | 80.0 | 3.0 | 10.0 | 7.3 |
Stainless steel cable rod decorative mesh feature:
1. Fireproof: Its meting point is far higher than that of cloth.
2. Stable:No shrinks or stretches when used
3. Light diffusing:Light filtration is controlled by curtain
fullness and light conditions
4. No maintenance: Stains can be washed off by mild soap water.
5. Permanent:It will last longer than your life except you don't
like to hang it any more.

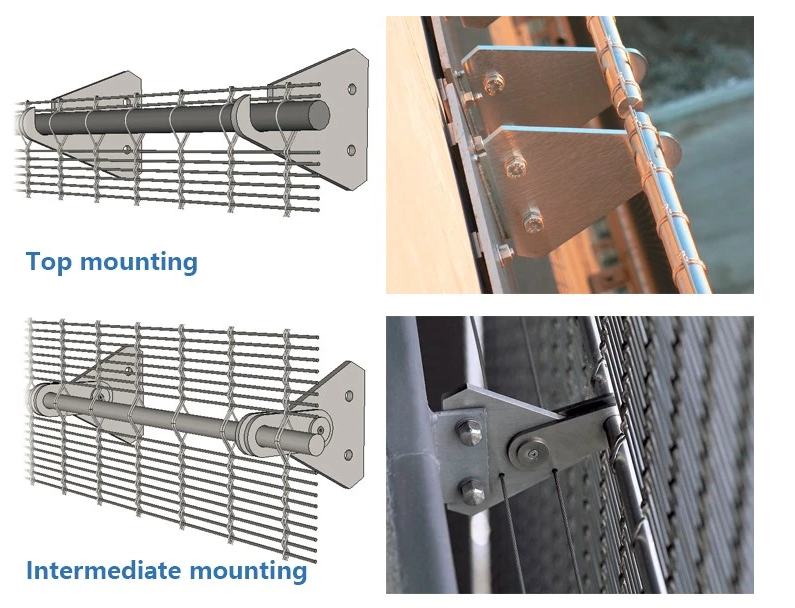

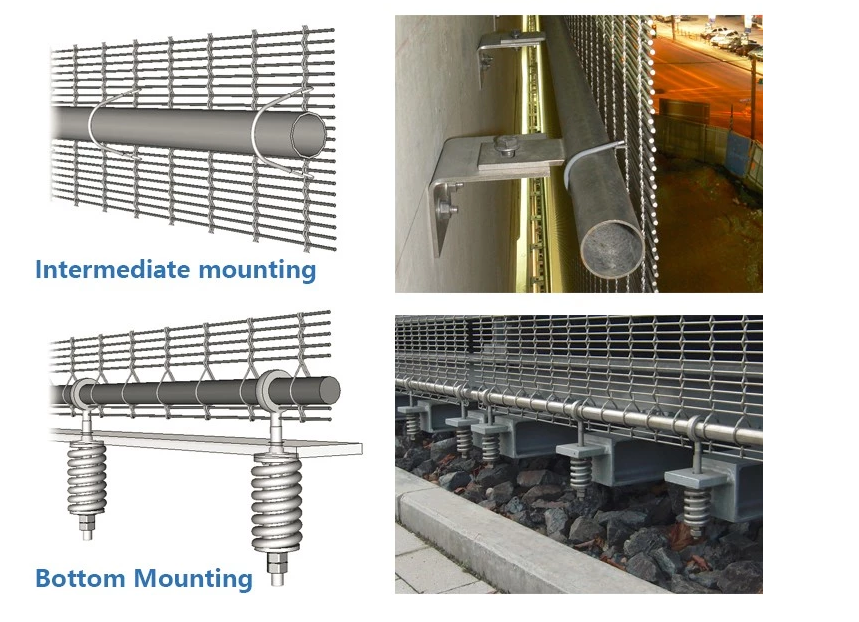

The installation methods
Staibless steel cable rod decorative mesh usage :
Metal decorative stainless steel curtain screen is also used in the
structure of the facade,partition,ceiling,balcony and
corridors,shutter,stairs passage,high grade internal and external
decoration of airport station,hotels,senior
villas,museums,theaters,concern halls,office buildings,exhibition
halls,shopping malls etc.Especially the decorative mesh show more
elegant,transparant and plain visual effect.
