    Customized Johnson Wire Screen Stainless Steel For Well Drilling

    Customized Stainless Steel Wedge Wire Johnson Screen For Well Drilling


    Product Information

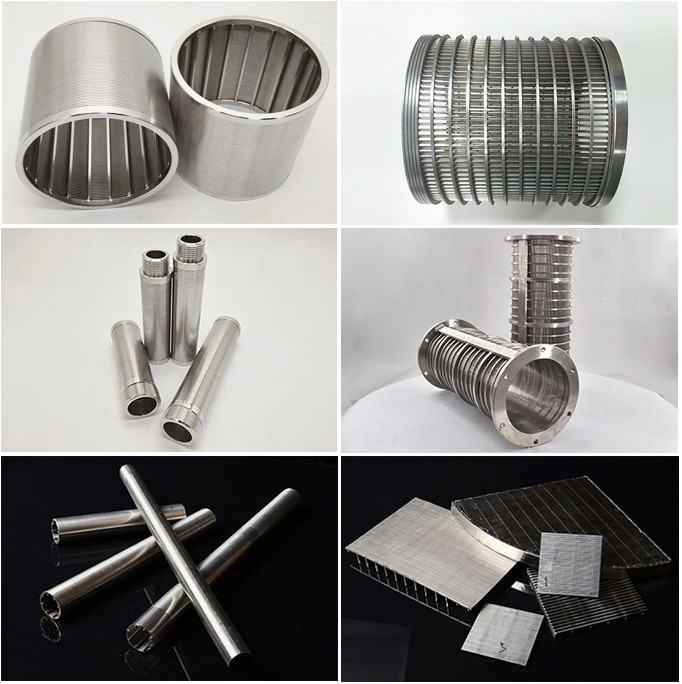

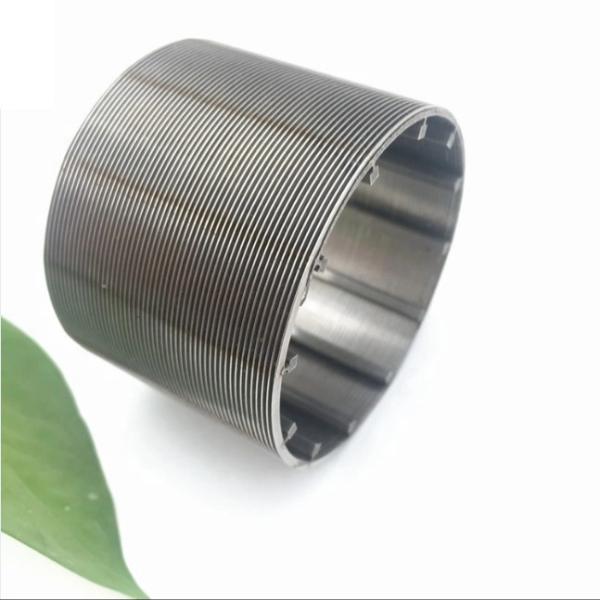

    Wedge wire filter, also called wedge wire strainer, wedge screen filter, wedge wire filter strainer, is composed of wedge wires and support bars. It is durable and no deforming for longer time using, with our mature wedge wire filter processing technology.

    The profile wires of wedge screen filter usually wedge wire or triangle wire, and support bars could be triangle wire, round wire, flat wire and wedge wire. Besides, it has an inwardly expanding v-shaped groove to minimize the solid particles clogging.

    Wedge wire filter screen pipe johnson screen is a mechanical self-cleaning device that was developed to meet the growing need and demand for an efficient and economical method of removing suspended solids from mixed liquid streams. The continuous and self-cleaning effect of the rotating screens makes it possible to use higher flow capacities than those of any other type of screen thus resulting in substantial savings with respect to both investment and maintenance.


    Parameter


    Materialstainless steel 304/316
    Wedge wire

    Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm

    Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm

    Support rod

    Width:2.3mm 3.0mm 3.3mm 3.7mm

    Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm

    Round : from 2.5mm---6.0mm

    Support profileFlat,triangle wire,round wire,trapezoid wire
    Sizecan be customized
    CharacteristicsStrong solid structure,High open area, accurate slot dimensions

    Advantage


    1.long service life

    2.high opening rating
    3.Uniform screen seam, stable welding quality
    4.good strength, stiffness and load capacity

    5.Strong to be acid-proof , alkali-resisting , bear high temperature , pulling force and wear ability


    Application


    Architecture and construction

    Food and beverage screens

    OEM screen components

    Refining and petrochemical

    Waste water treatment

    Water well and oil well

    Coal and mine

    Chemical industry

    Pharmacy

    Metallurgy

    Coal mining

    Environmental protection


    FAQ


    Q1:Can i get a free samples?

    A:Yes,we have free samples to be provided anytime.


    Q2:What type of materials do you use for your products?

    A:stainless steel.


    Q3:Is there quality control on all production lines ?

    A:Yes,all production line have adequate quality control.


    Q4:What is your terms of payment ?

    A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you the videos of products and packages before you pay the balance.


    Q5:How about the delivery time ?

    A:Generally,it will take 15days after receiving your advance payment.The specific delivery time depends on the items and the quantity of your order.
