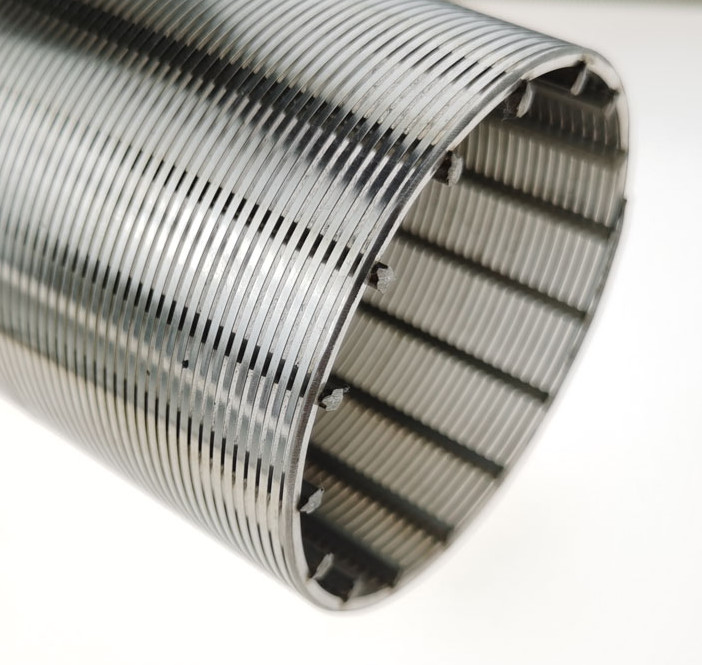

Stainless Steel Microns Wedge Wire Drum Screen Filter Screen
Replacement
Product Information
Wedge wire is a welded steel structure, mainly used for filtration,
separation and retention media.
It consists of surface profiles, usually V-shaped, that are
resistance welded onto support profiles. The distance between the
surface profiles is controlled very accurately, as it forms the
slot through which the filtrate flows.
Wedge wire filter are welded structures with the support profiles
being rods in the axial direction of the tube and surface profiles
spirally wound around the support profiles. Our wedge wire filter have the unique advantage of very accurate,
narrow slot openings and perfect roundness all in one.
It is supplied in stainless steel and other special steel metals
and alloy metal screens, mainly used on dewatering equipment.
Wedge wire screen is made with certain size of woven wire cloth as
screen fabrics, then framed with stainless steel or coated carbon
steel plates. offering great strenght.precision ,long service life.
Parameter
| Material | stainless steel 304/316 |
| Wedge wire | Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod | Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Support profile | Flat,triangle wire,round wire,trapezoid wire |
| Size | can be customized |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
End Finishing: | Thread fitting,flange,closed plated,resistance welded closed
plate,metal ring,etc |
Advantage
Corrosion resistance, high and low temperature resistance, pressure
resistance, good wear resistance, long use period
Usage widely used in laboratory, chemical fiber, petroleum,
chemical industry, pharmacy, foodstuff, water treatment electric,
power, pharmaceutics, machinery, metallurgy, ceramics, dispose of
sewage, foodstuff and beverage, cosmetic etc.
Application
widely used in mining, coal, petroleum, metallurgy, fertilizer,
grain, chemical industry, food industry, starch processing, sugar
processing, wastewater management, sludge dewatering, stone and
quarry industry.
Packing
1.for small quantity, shipped by courier.
2.for large quantity, shipped by air or by sea.
3.tracking number will be emailed to you after order has been
shipped.
4.If you have forwarder in China, we can send to your forwarder for
free.
FAQ
Q1:Can i get a free samples?
A:Yes,we have free samples to be provided anytime.
Q2:What type of materials do you use for your products?
A:stainless steel.
Q3:Is there quality control on all production lines ?
A:Yes,all production line have adequate quality control.
Q4:What is your terms of payment ?
A:T/T 30% as deposit,and 70% balance before delivery.We’ll show you
the videos of products and packages before you pay the balance.
Q5:How about the delivery time ?
A:Generally,it will take 15days after receiving your advance
payment.The specific delivery time depends on the items and the
quantity of your order.
